The latest generation of ultra-thin laptops as well as devices often lack enough ports to allow users to be truly productive. The SD5560T docking station offers a wealth of connectivity options as well as requires no drivers or downloads.
Working featuring both Windows as well as macOS, SD5560T is compatible including Thunderbolt 3, Thunderbolt 4 along with USB-C devices. SD5560T supports up to two external displays via HDMI and USB-C for Thunderbolt-enabled devices.
Remain connected as well as productive with 2 x USB-C ports, 4 x USB-A ports, 1 x Gigabit Ethernet port, 1 x Audio Combo jack, 1 x HDMI 2.0 port along with an additional Thunderbolt 3 port.* All backed by data transfer speeds up to 40Gbps along with 96W Power Delivery to keep your device charged - via a single connection. * When used with USB-C Alt Mode laptops, this Thunderbolt 3 port is downgraded to USB 2.0 as well as does not support video or daisy chaining features.
Universally compatible, this docking station works including Thunderbolt 3, Thunderbolt 4, along with USB-C laptops running Windows or macOS. Perfect for hot-desking, mixed deployment environments as well as home office use.

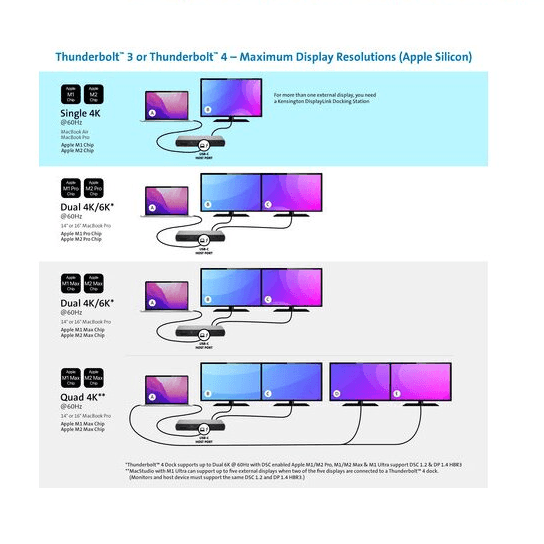

Thunderbolt technology allows users to transfer up to 40Gbps of data, video along with audio (10Gbps for USB-C 3.2 Gen2 laptops as well as 5Gbps for USB-C 3.2 Gen1 laptops) using the included 0.8m (2.6') Thunderbolt 3 cable, for a powerful plug-and-play experience. Single or Dual 4K video output for Thunderbolt-enabled devices lets you extend visual productivity with the resolution, contrast as well as colour depth of Ultra HD (Single or Dual 4K @ 60Hz) via 1 x HDMI 2.0 port and 1 x additional Thunderbolt 3 port.
USB-C Alt Mode devices support a single monitor via the HDMI port (DP1.2 at 4K/30Hz and DP1.4 at 4K/60Hz). 96W Power Delivery allows you to quickly and easily charge any Thunderbolt 3, Thunderbolt 4 or USB-C-enabled laptop (USB-C laptops must support Power Delivery).
A productive desktop setup, this 10-port universal docking features multiple ports for connecting peripherals as well as accessories: 2 x front USB-C 3.2 Gen2 ports (1 x 5V/1.5A/10Gbps, 1 x 9V/2.22A/10Gbps), 4 x USB-A ports (1 x front 3.2 Gen2 5V/0.9A/10Gbps, 3 x rear (2 x supporting 3.2 Gen1 5V/0.9A/5Gbps, 1 x 3.2 Gen2 5V/0.9A/10Gbps), 1 x Gigabit Ethernet port, 1 x audio combo jack, 1 x HDMI 2.0 port, 1 x Thunderbolt 3 port (when used including USB-C Alt Mode laptops, this Thunderbolt 3 port is downgraded to USB 2.0 as well as does not support video or daisy chaining features). designed to support horizontal and vertical placement on the desktop.
Free Kensington DockWorks software for the best connection, performance as well as security from your Kensington dock. Driverless: Yes Number of Screen Outputs: 2 Video ports: HDMI, Thunderbolt 3 Maximum resolution: 4K Power delivery: 96W Operating system: Chrome OS, macOS, Windows Number of USB ports: 6 USB fast charging: Yes Docking station family Compatibility: Chrome OS 91 or above, macOS 11 or above, Windows 10 or above USB-A ports: 4 x: (1) USB 3.2 Gen1 (front) with 5V/0.9A, (1) USB 3.2 Gen2 (back) (2) USB 3.2 Gen1 (back) all supporting 5V/0.9A USB-C ports: 2 x: USB 3.2 Gen2 (front) one including 5V/1.5A charging, one with 9V/2.22A charging Audio: 1 x 3.5mm Combo Microphone & Headphone Port (front) Data transfer speeds: Supports up to 40Gbps data transfer speed Ethernet Speed (Mbps): 10, 100, 1000 Maximum resolution supported: Ultra HD (Single or Dual 4K @ 60Hz) via one HDMI 2.0 port and one additional Thunderbolt 3 port.
, USB-C Alt Mode devices support a single monitor via the HDMI port (DP1.2 at 4K/30Hz as well as DP1.4 monitor at 4K/60Hz). Period of Warranty: 3 years Plug & play: Plug & play installation without need for drivers or downloads Video output: 1 x HDMI v2.0, Thunderbolt 3 port
