Expand your productivity featuring the SD4840P USB-C 10Gbps Triple Video Driverless Docking Station. Features include two DisplayPort++ 1.4 ports, one HDMI 2.0b port; support for a minimum resolution of Single 4K @ 30Hz, Dual 1080p @ 60Hz, and Triple 1080p @ 30Hz when connected to a DP1.2/HBR2 device, as well as a maximum resolution of Single 5K @ 60Hz, Dual 4K @ 60Hz, along with Triple 4K at 30Hz when connected to a DP1.4 HBR3 DSC device; one USB-C 3.2 Gen2 port; three USB-A 3.2 Gen2 ports; a combo audio port; a Gigabit Ethernet port; flexible mounting options; optimized performance including free Kensington DockWorks software.
Driverless USB-C Connectivity No driver to download, install, or update. 10Gbps data transfer speed as well as 85W Power Delivery (PD 3.0) make this an perfect solution for all USB-C Windows laptops supporting DisplayPort Alt Mode along with Power Delivery.
Numerous Video Ports featuring two DisplayPort++ 1.4 ports along with one HDMI 2.0b port, select the right connections as well as resolutions for your needs. Resolutions supported vary by the device connected (see manual or specifications table for more information).
Dynamic Video Support Supports a minimum resolution of Single 4K @ 30Hz, Dual 1080p @ 60Hz, along with Triple 1080p @ 30Hz when connected to a DP1.2/HBR2 device; as well as a maximum resolution of Single 5K @ 60Hz, Dual 4K @ 60Hz, and Triple 4K at 30Hz when connected to a DP1.4 HBR3 DSC device. 85W Power Delivery Quickly along with easily charge any Thunderbolt 3, Thunderbolt 4, or USB-C enabled laptop (USB-C laptops must support Power Delivery).

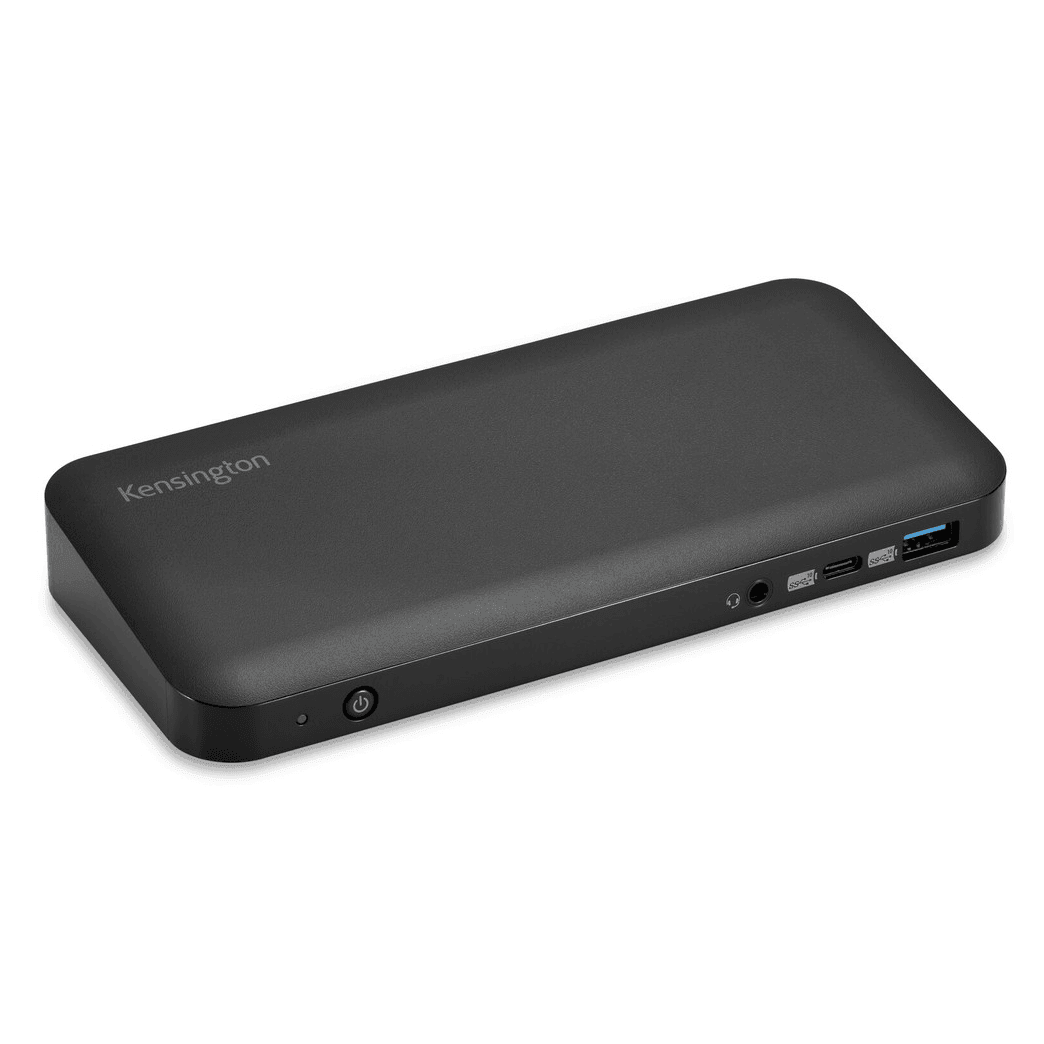

9-in-1 Design with Four USB-ports The front side features one USB-C 3.2 Gen2 port (up to 5V/1.5A/10Gbps), one USB-A 3.2 Gen2 port (up to BC1.2, 5V/1.5A and Apple Charging, 5V/2.4A/10Gbps), as well as a combo audio port. The rear features two USB-A 3.2 Gen2 ports (up to 5V/0.9A/10Gbps), a Gigabit Ethernet port, two DP++ 1.4 ports, as well as one HDMI 2.0b port.
Features Best For: USB-C laptops and Ultrabooks that support Power Delivery, along with monitors that support up to Triple 4K Connection Technology: USB-C Alt Mode Power Delivery: 85W Compatibility: Windows 7 or above # of Monitors Supported: 3 Video Ports: (1) HDMI 2.0b, (2) DP++ 1.4 Maximum Resolution Supported: Minimum resolution (DP1.2/HBR2): Single 4K @ 30Hz, Dual 1080p @ 60Hz, Triple 1080p @ 30Hz // Maximum Resolution (DP1.4/HBR3 DSC): Single 5K @ 60Hz, Dual 4K @ 60Hz, Triple 4K @ 30Hz Plug and Play: Plug and play installation without the need for drivers or downloads System Requirements: Host device must support Power Delivery along with DisplayPort Alt mode over USB-C Optimized for your Windows 11 docking station needs, including support for Snap Layouts along with Snap Groups This dock supports the Gigabit Ethernet standard which provides a maximum data rate of 1Gbps. Actual Ethernet speeds may vary depending on, but not limited to, Internet bandwidth, Ethernet cables, network switches, as well as the hardware along with firmware performance of the host computer.
Connection technology USB-C Alt ModeDriverless YesNumber of Screen Outputs 3Video ports DisplayPort++, HDMIMaximum resolution 4KPower delivery 85WOperating system(s) WindowsNumber of USB ports 4USB fast charging YesDocking station family The Task MasterDockWorks YesBest For USB-C laptops along with Ultrabooks that support Power Delivery, and monitors that support up to Triple 4KCompatibility Windows 7 or aboveUSB-A ports 3x: (1) USB-A 3.2 Gen2 (front) with up to 5V/2.4A fast-charging & (2) USB-A 3.2 Gen2 (back) supporting 5V/0.9AUSB-C ports 1 x: USB-C 3.2 Gen2 (front) featuring 5V/1.5A chargingAudio 1 x 3.5mm Combo Microphone & Headphone Port (front)Data transfer speeds Supports up to 10Gbps data transfer speedEthernet Speed (Mbps) 1000, 100, 10Maximum resolution supported Minimum resolution (DP1.2/HBR2): Single 4K @ 30Hz, Dual 1080p @ 60Hz, Triple 1080p @ 30Hz // Maximum Resolution (DP1.4/HBR3 DSC): Single 5K @ 60Hz, Dual 4K @ 60Hz, Triple 4K @ 30HzPeriod of Warranty 3 yearsPlug & play Plug & play installation without need for drivers or downloadsSecurity slot compatibility Kensington Security SlotSystem requirements Host device must support Power Delivery as well as DisplayPort Alt mode over USB-CUSB-C Power Delivery Supports USB-C PD 3.0 (85W of laptop charging)Video output 2 x DisplayPort++ v1.4, 1 x HDMI v2.0b4K support YesSKU K33806APColour Black
