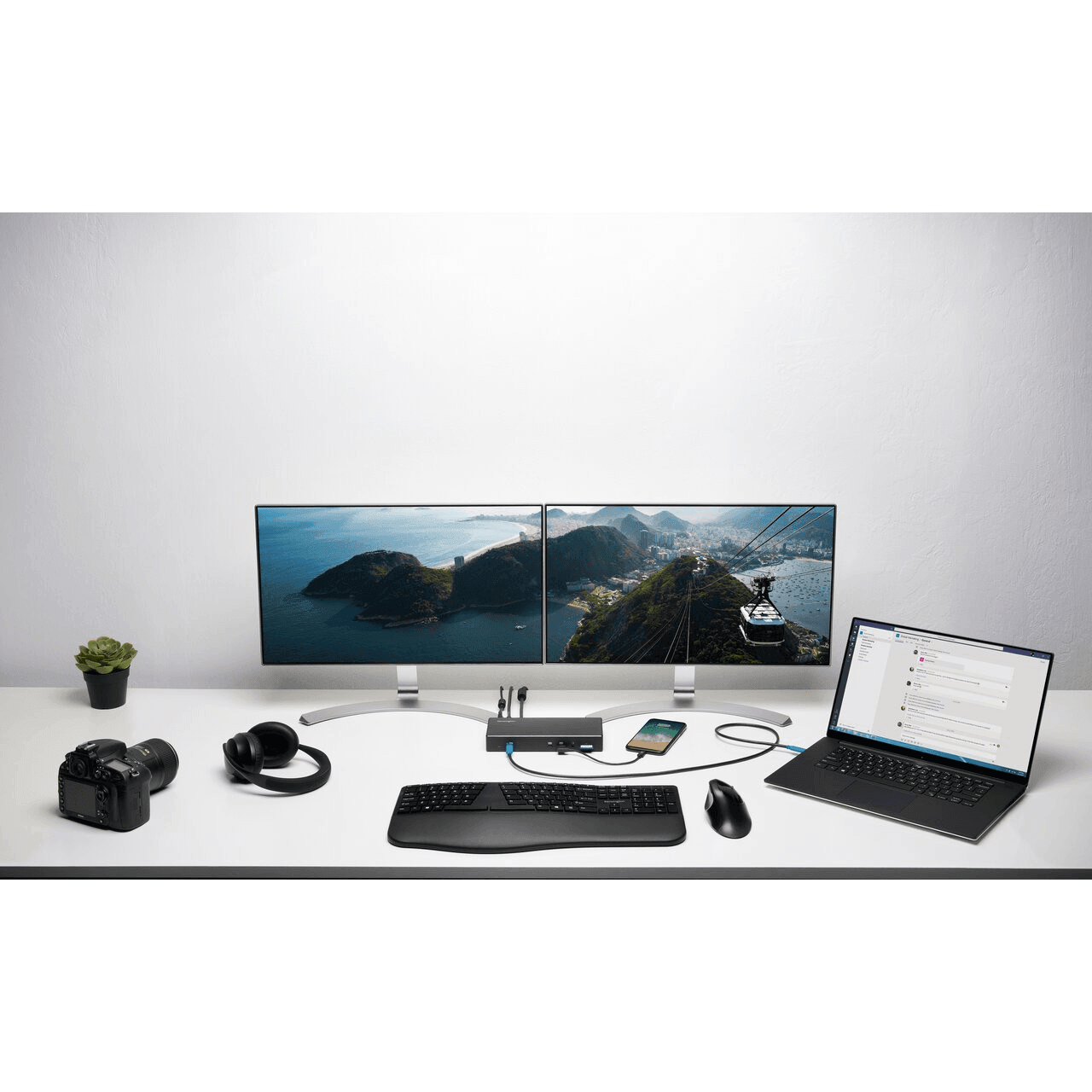

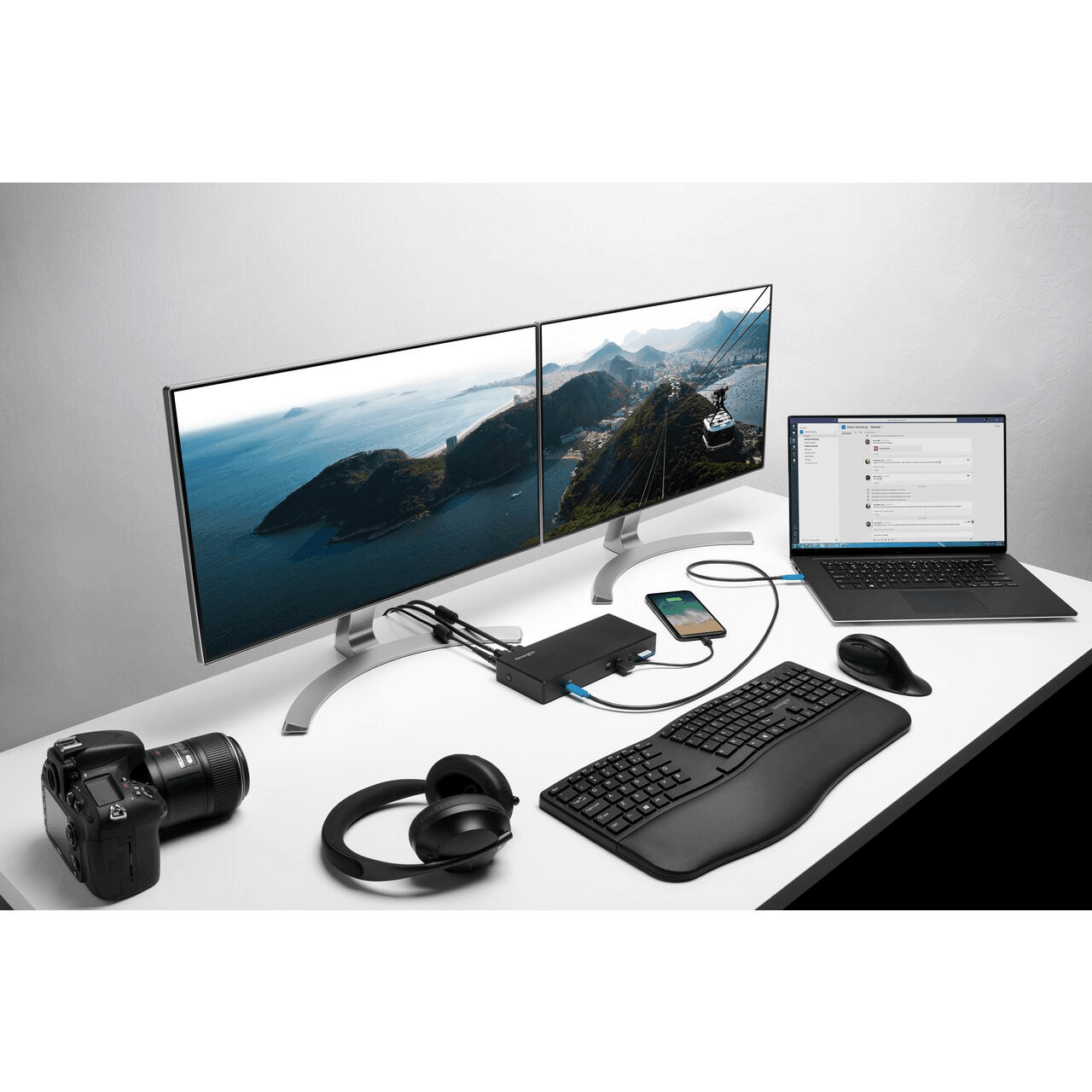

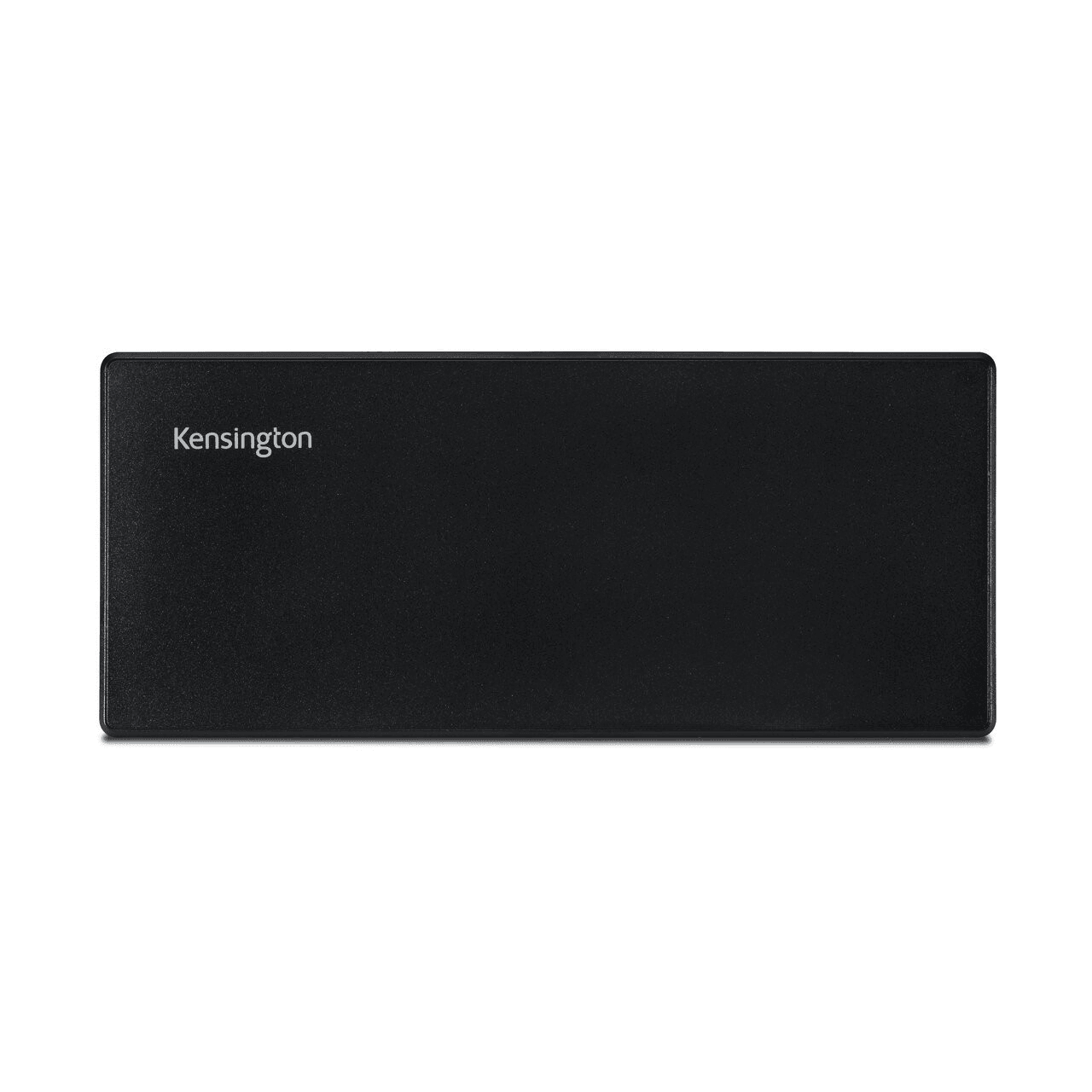

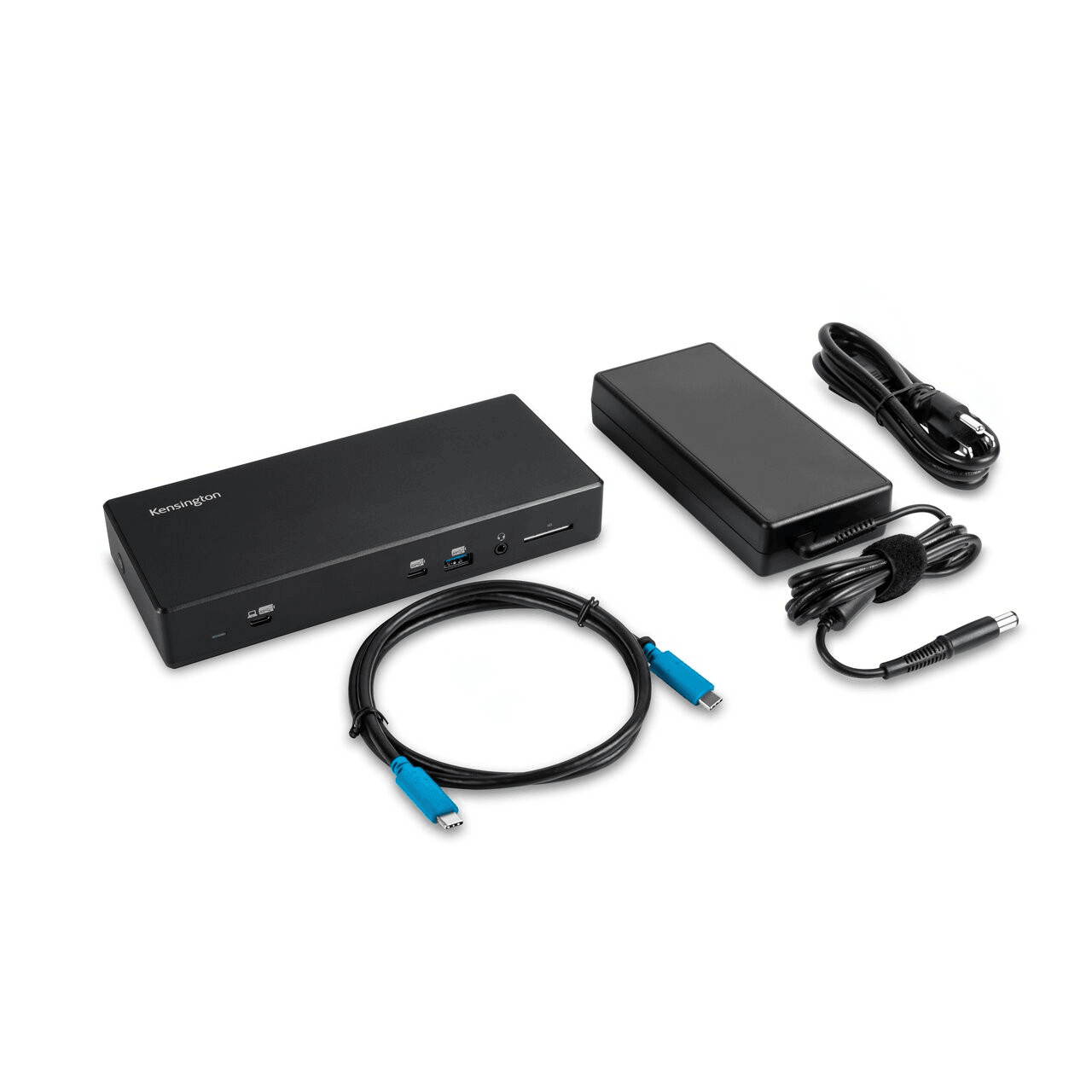

The SD4850P USB-C 10Gbps Dual Video Driverless Docking Station - 100W PD - DP++/HDMI - Windows is the top-of-the-line USB-C driverless dock for any Windows OS laptop including a USB-C port supporting DisplayPort Alt Mode along with Power Delivery. One connection expands your Windows 7 or above laptop into a fully powered yet streamlined desktop setup supporting up to Dual 4K via a 13-in-1 design complete featuring 6 USB-ports.
Driverless, USB-C Connectivity including 10Gbps Data Transfer Speed along with 100W Power Delivery (PD 3.0) No driver installation required to access 10Gbps Data Transfer Speed along with 100W Power Delivery (PD 3.0). The best docking station for all Windows OS laptops including a USB-C port supporting DisplayPort Alt Mode and Power Delivery.
Numerous Video Ports featuring two DisplayPort++ ports and one HDMI port, the user can select the right connections and resolutions for their needs an optional USB-C Alt Mode can be used in place of one DP++ port. Resolutions supported vary by the device connected (see manual or specifications table for more information).

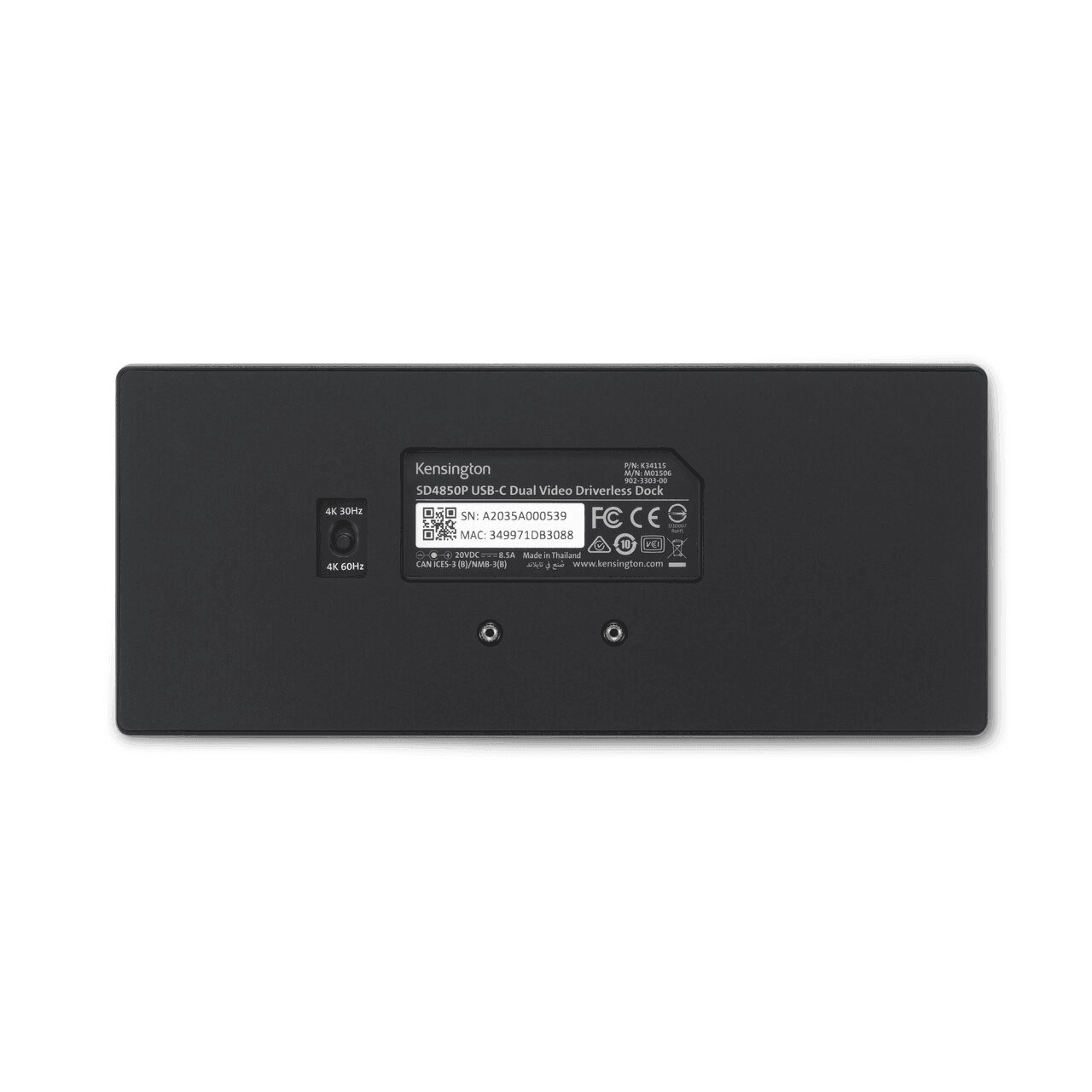

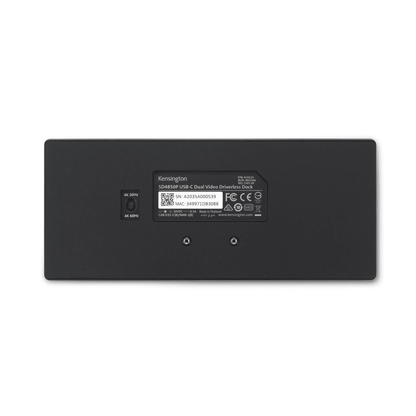

Dynamic Video Support Supports a minimum resolution of Single 4K @ 30Hz, Dual 1080p @ 60Hz, and Triple 1600x900 @ 60Hz when connected to a DP1.2/HBR2 device as well as a maximum resolution of Single 4K @ 60Hz, Dual 4K @ 60Hz, and Triple 4K at 60Hz when connected to a DP1.4 HBR3 device. A dynamic 4K switch allows you to toggle between modes, prioritizing resolution over USB, Ethernet, and SD Card speeds.
See manual or specifications table for more information. Universal Windows Compatibility A windows dock that connects seamlessly to any laptop running Windows 7 and above.

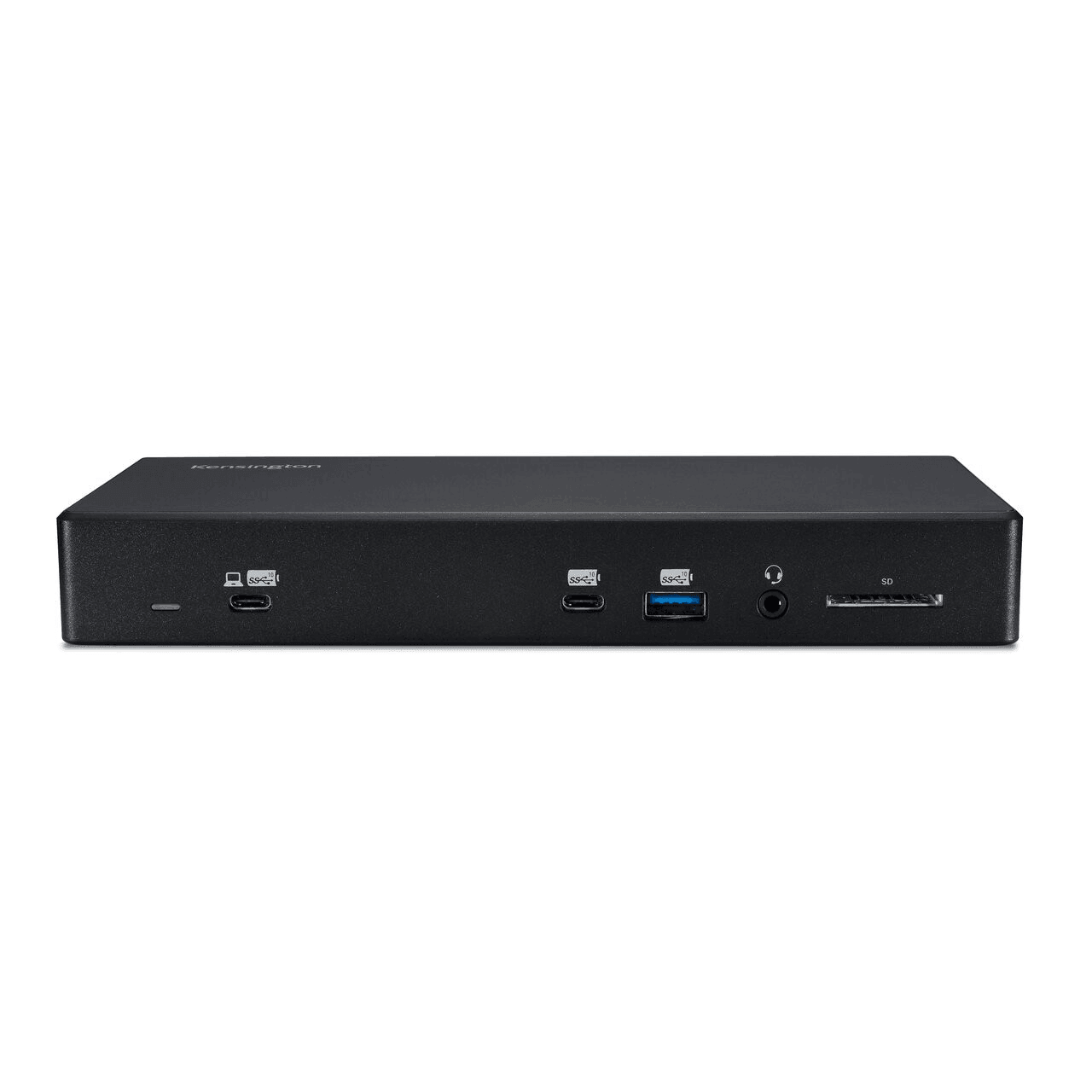

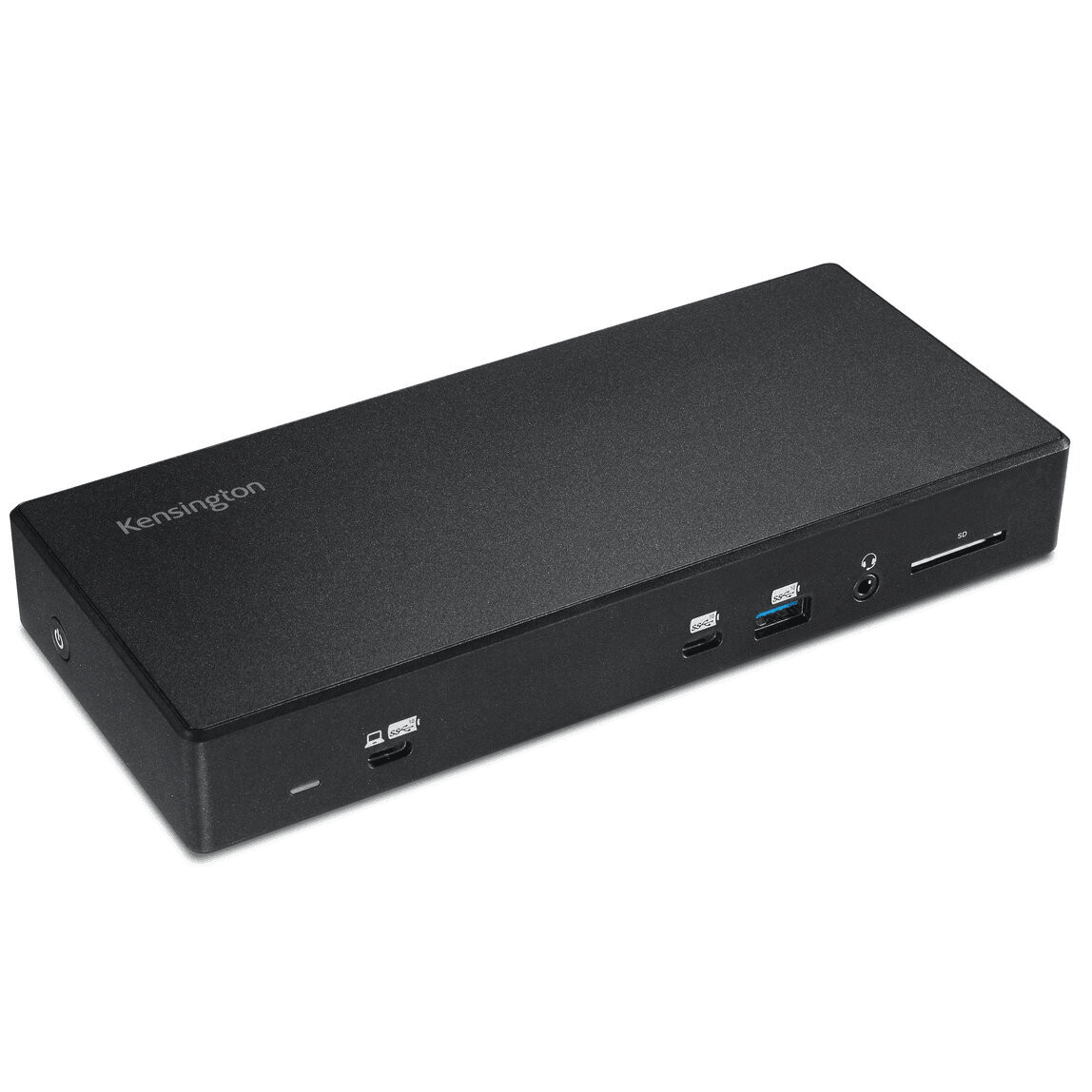

13-in-1 design featuring 6 USB-ports Complete including 6 USB-ports that give full power to your laptop along with devices. Its front side features one USB-C 3.2 Gen2 port up to 5V/3A/10Gbps, one USB-A 3.2 Gen2 port up to 5V/2.4A/10Gbps, a combo audio port, along with a UHS II SD 4.0 Memory Card Reader.

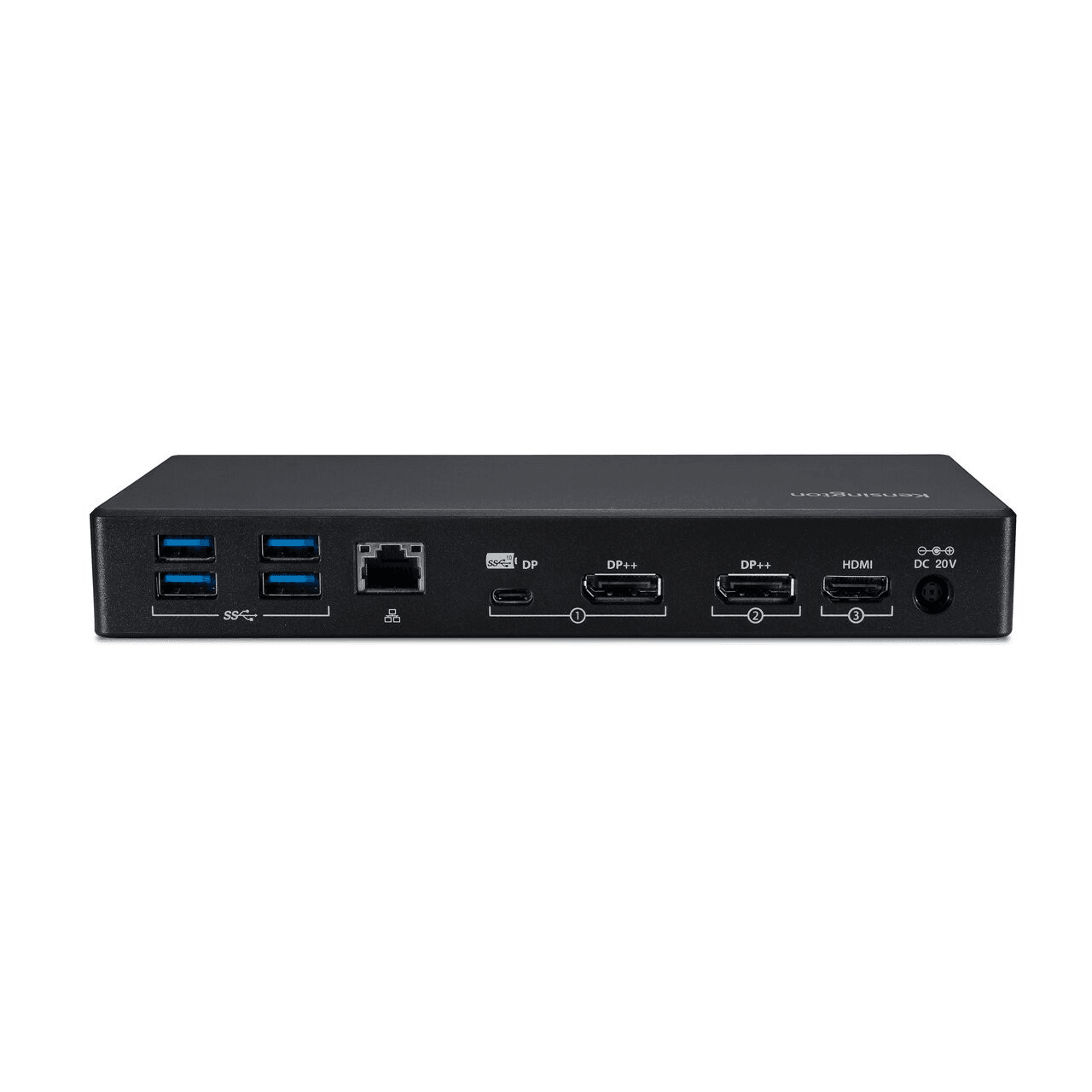

Its rear features four USB-A 3.2 Gen1 ports up to 5V/0.9A/5Gbps, a Gigabit Ethernet port, along with four video ports: two DP++ ports, one HDMI port, as well as one USB-C port. UHS II SD 4.0 Memory Card Reader Eliminates the need for additional adapters along with accessories to transfer large hi-res photos as well as video footage at ultra-fast speeds.
Features Best For: Windows OS (7 or above) laptop including a USB-C port supporting DisplayPort Alt Mode and Power Delivery Connection Technology: USB-C Power Delivery: Supports up to 100W of Power Delivery (PD 3.0) Compatibility: Compatible with Windows 7 or above laptops featuring a USB-C port supporting DisplayPort Alt Mode and Power Delivery # of Monitors Supported: 2 Video Ports: 2 x DisplayPort++ ports as well as 1 x HDMI port Maximum Resolution Supported: Single 4K @ 60Hz, Dual 4K @ 60Hz, along with Triple 4K at 60Hz when connected to a DP1.4 HBR3 device Plug & Play: Plug & play installation, though installation of Kensington DockWorks software is recommended for the best connection, performance, as well as security from your Kensington universal docking station System Requirements: Driverless no firmware or software required for setup Warranty: 3 Years USB-C Microsoft Devices: We are aware of a general USB-C compatibility issue between USB-C docking stations (not only those from Kensington) as well as USB-C based Microsoft devices. The issue results in a lack of consistent charging along with video output to your USB-C Microsoft device.
If you would like to contact us to be updated when a fix is in place, please reach out to our Tech Support team. Optimised for your Windows 11 docking station needs, including support for Snap Layouts as well as Snap Groups.
*This dock supports the Gigabit Ethernet standard which delivers a maximum data rate of 1Gbps. Actual Ethernet speeds may vary depending on, but not limited to, Internet bandwidth, Ethernet cables, network switches as well as the hardware along with firmware performance of the host computer.

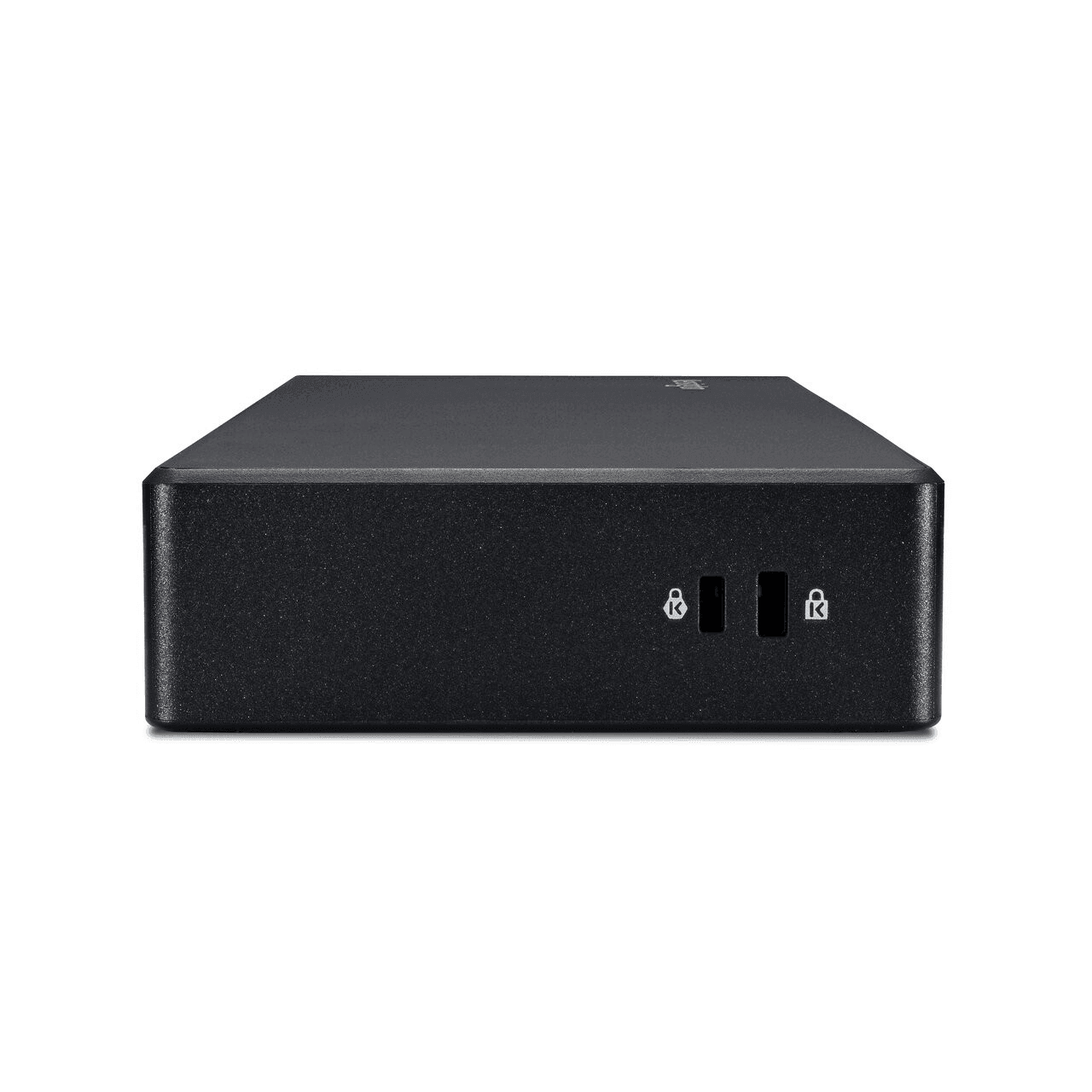

Connection technology USB-C Alt Mode Driverless Yes Number of Screen Outputs 3 Video ports DisplayPort++, USB-C, HDMI Maximum resolution 4K Power delivery 100W Operating system(s) Windows Number of USB ports 6 USB fast charging Yes Docking station family The Task Master DockWorks Yes Best For USB-C Laptops & Ultrabooks that support Power Delivery and Monitors that support up to dual 4K (4 Lane mode) Card Reader SD Card Slot (UHS-II, SD4.0) USB-A ports 5x: (1) USB-A 3.2 Gen2 (front) including 5V/2.4A fast-charging & (4) USB-A 3.2 Gen1 (back) supporting 5V/0.9A USB-C ports 1 x: USB-C 3.2 Gen2 (front) including 5V/3A charging Audio 1 x 3.5mm Combo Microphone & Headphone Port (front) Data transfer speeds Supports up to 10Gbps data transfer speed Ethernet Speed (Mbps) 1000, 100, 10 Maximumresolutionsupported Minimum Resolution (DP1.2/HBR2): Single 4K @ 30Hz Dual 1080p @ 60Hz Triple 1600x900 @ 60Hz ,Maximum Resolution (DP1.4/HBR3): Single 4K @ 60Hz Dual 4K @ 60Hz Triple 4K @ 60Hz Period of Warranty 3 years Plug & play Plug & play installation without need for drivers or downloads Security slot compatibility Kensington Security Slot, Kensington Nano Security Slot System requirements Host device must support Power Delivery and DisplayPort Alt mode over USB-C USB-C Power Delivery Supports USB-C PD 3.0 (100W of laptop charging) Video output 1 x HDMI v2.0, 1 x USB-C DP ALT Mode, 2 x DisplayPort++ v1.4 4K support Yes SKU K34115AP Colour Black
