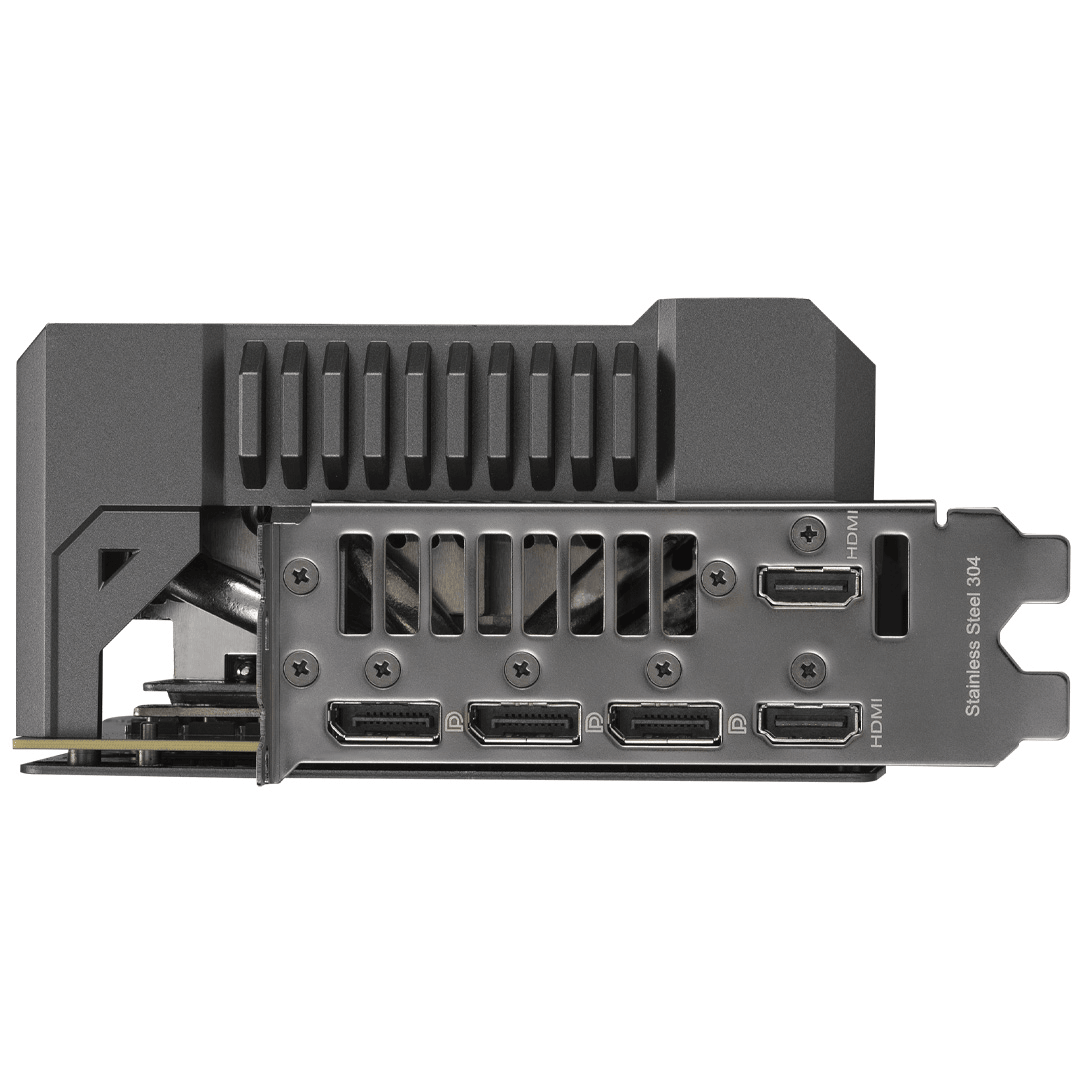

The ASUS GeForce RTX 4090 TUF Gaming OC 24GB graphics card features a 2565MHz boost clock, 2595MHz boost clock (OC mode), 24GB GDDR6X 384-bit memory interface, 21Gb/s memory speed, 2 x HDMI 2.1a, 3 x DisplayPort 1.4a, HDCP 2.3 support, OpenGL 4.6 along with DirectX 12 Ultimate support and RGB lighting. Air Superiority Bigger along with better.

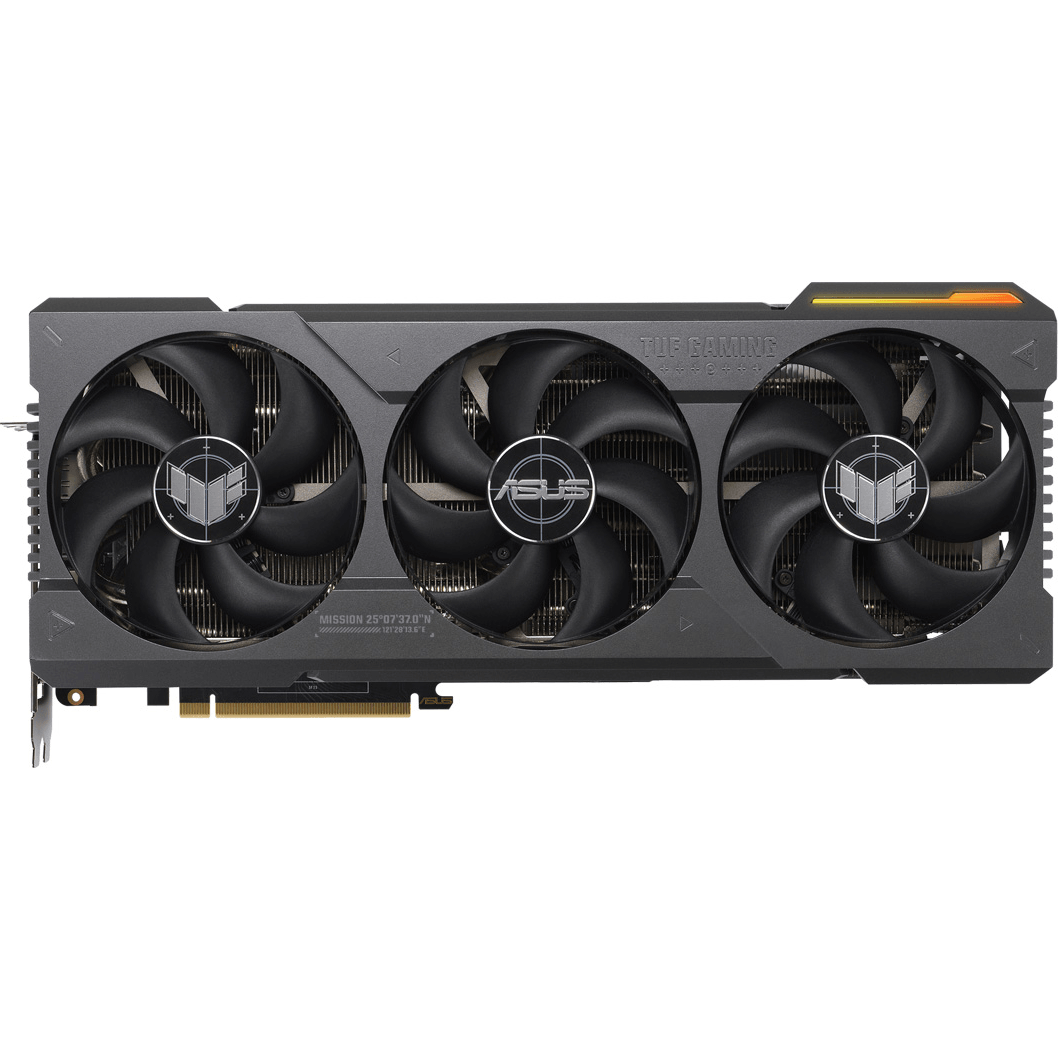

Axial-tech fans spin on dual-ball bearings along with have been scaled up to propel 23% more air through the card, setting the stage for lower temperatures, less noise, and higher performance. Well-Maintained Formation The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink.
All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 Celsius, referencing a speed curve that balances performance as well as acoustics for work or play.
Phase that Blaze A vapour chamber as well as generously sized heatsink combo efficiently soak up heat from the GeForce RTX 4090 GPU so that it can be whisked away by the three Axial-tech fans. Resilient Squadron A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature along with ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.
Power along with Purge Component along with trace layouts have been optimized onto a short PCB to reduce power losses along with let heat escape through a massive backplate vent. Analog Max Resolution None Card Interface PCI Express 4.0 Card Size 2 x 150 x 72.6 mm Chipset Manufacturer GeForce RTX 4090 Core Clock (MHz) OC 2550 Mhz, Gaming 2520Mhz Core Technology Ada Lovelace Digital Max Resolution 7680 x 4320 DirectX S 12 Ultimate Fan/Heat Sink Tri Fan Form Factor 65 slot / 348.2 x 150 x 72.6 mm Graphic Chipset GeForce RTX 4090 Input/output 2x HDMI, 3x DP Memory 24GB GDDR6X Memory Bus 384-bit Memory Clock (MHz) 21 Gbps Memory Size 24GB Memory Type GDDR6X Warranty 3 Years Limited Wattage 850W
